Motion of a planet around a fixed center : compressions of angular data.
1 Newton’s compression.

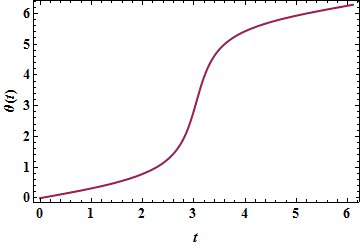

Newton’s equations (here in hamiltonian form) - together with the initial conditions set - accurately compress the data of measured angles θ (I1, I2 and I3 are the three autonomous invariants) :
Initial conditions :
Autonomous invariants :

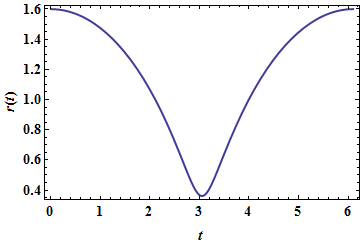

Period of the motion :

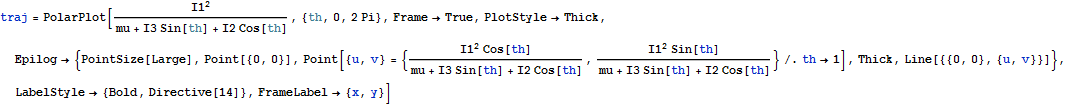

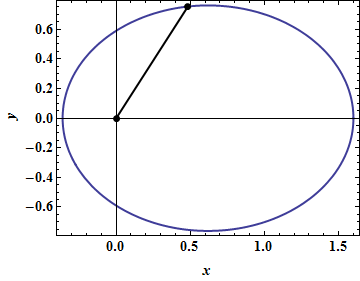

Trajectory :
Distance between center and focus :
2 Hipparchus-like compression :
A pure kinematical compression of θ as a function of t is possible on the ground of the Fourier-like false position, {x(t), y(t)} = {
+ ... } :
First approximation : one harmonic with period T (a1 and b1) :

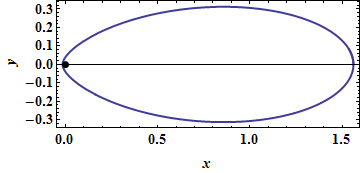

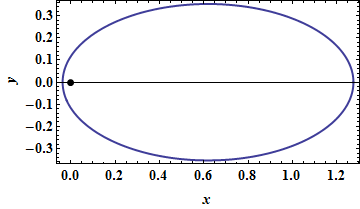

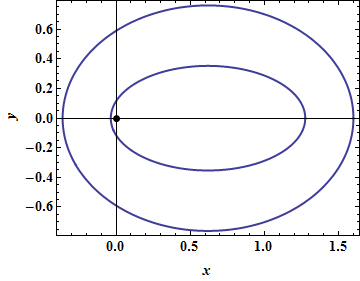

A very off-centered elliptic trajectory :

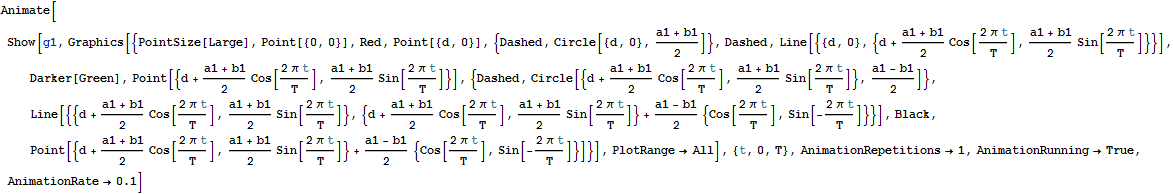

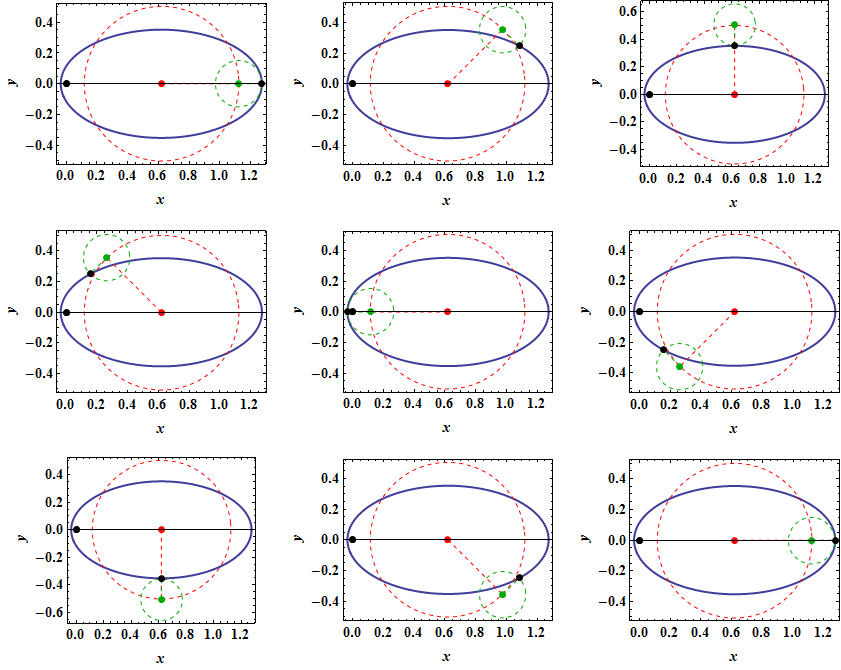

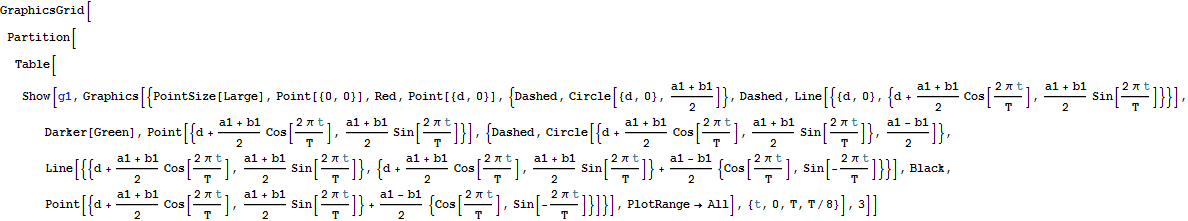

A geometrical construction involving two generating circles :

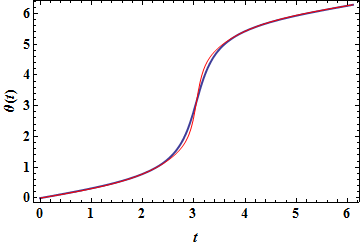

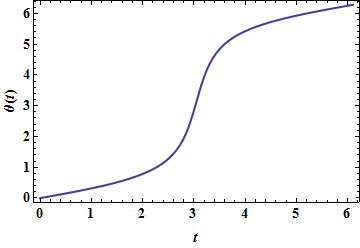

How well θ(t) is approximated (Newton in black and Hipparchus in red) :

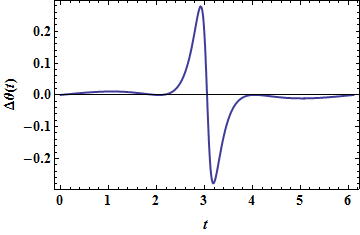

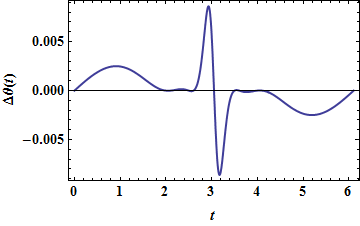

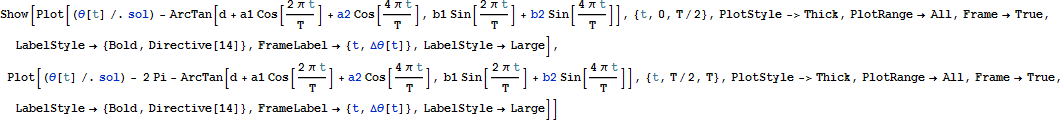

Absolute error :

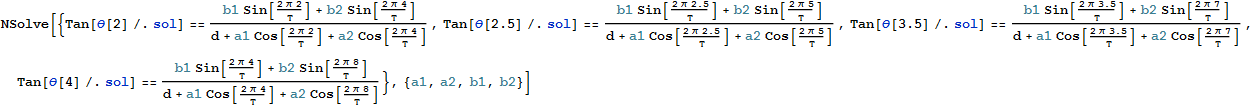

Second approximation : two harmonics with periods T and T/2 (a1, a2, b1 and b2) :
This time, θ(t) is well approximated (Newton in black and Hipparchus in red) :
The trajectory is no more an ellipse (!) :

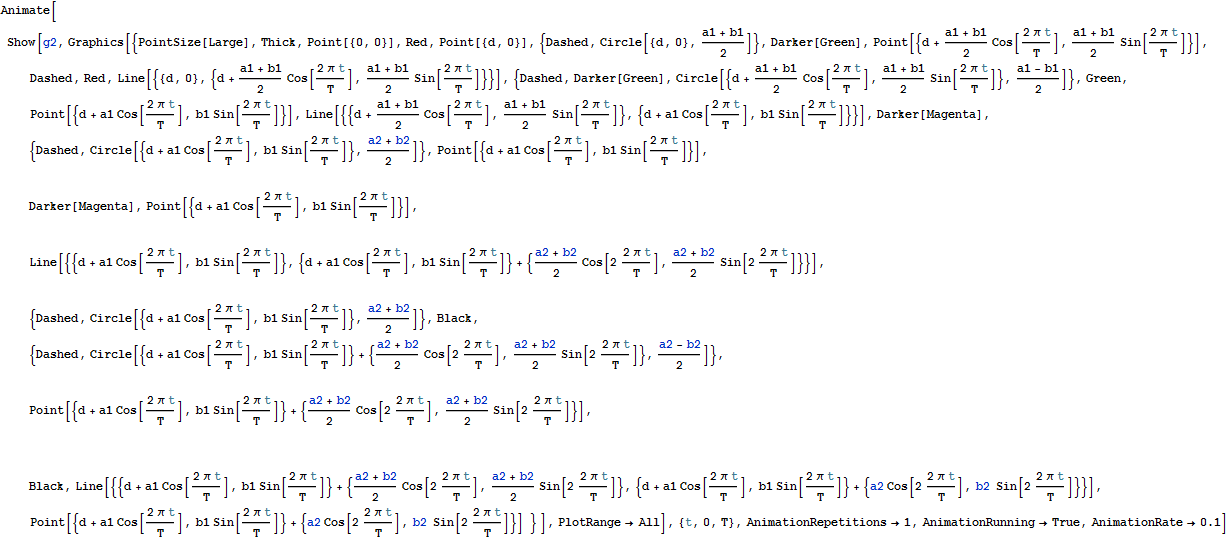

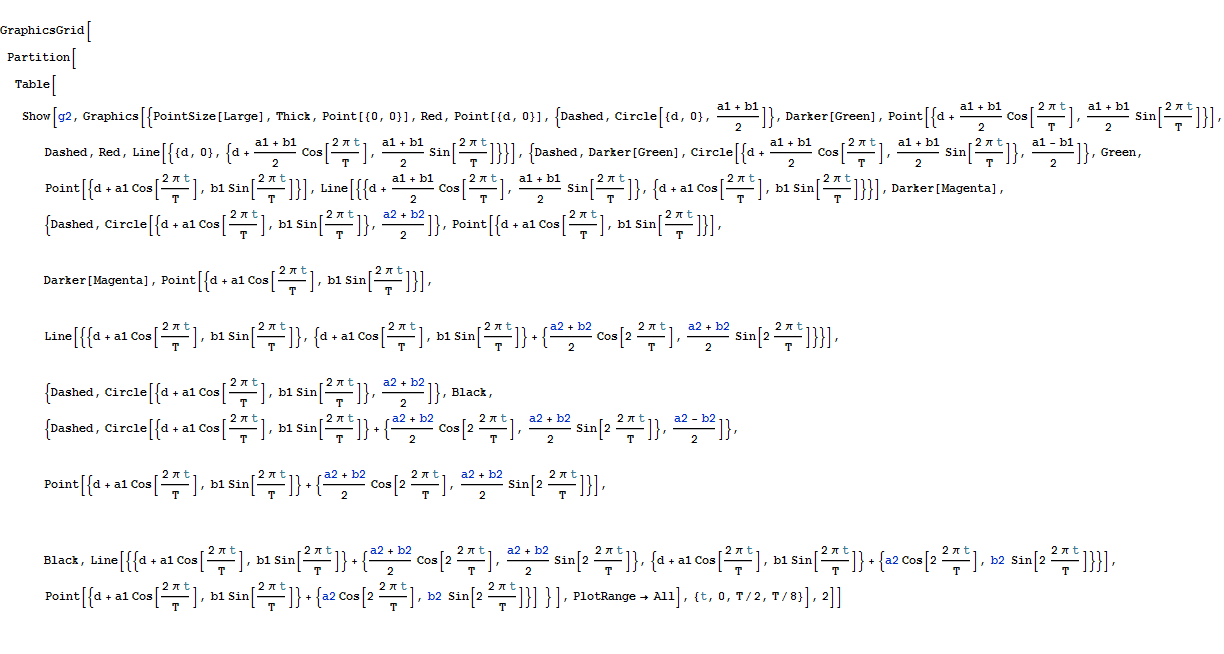

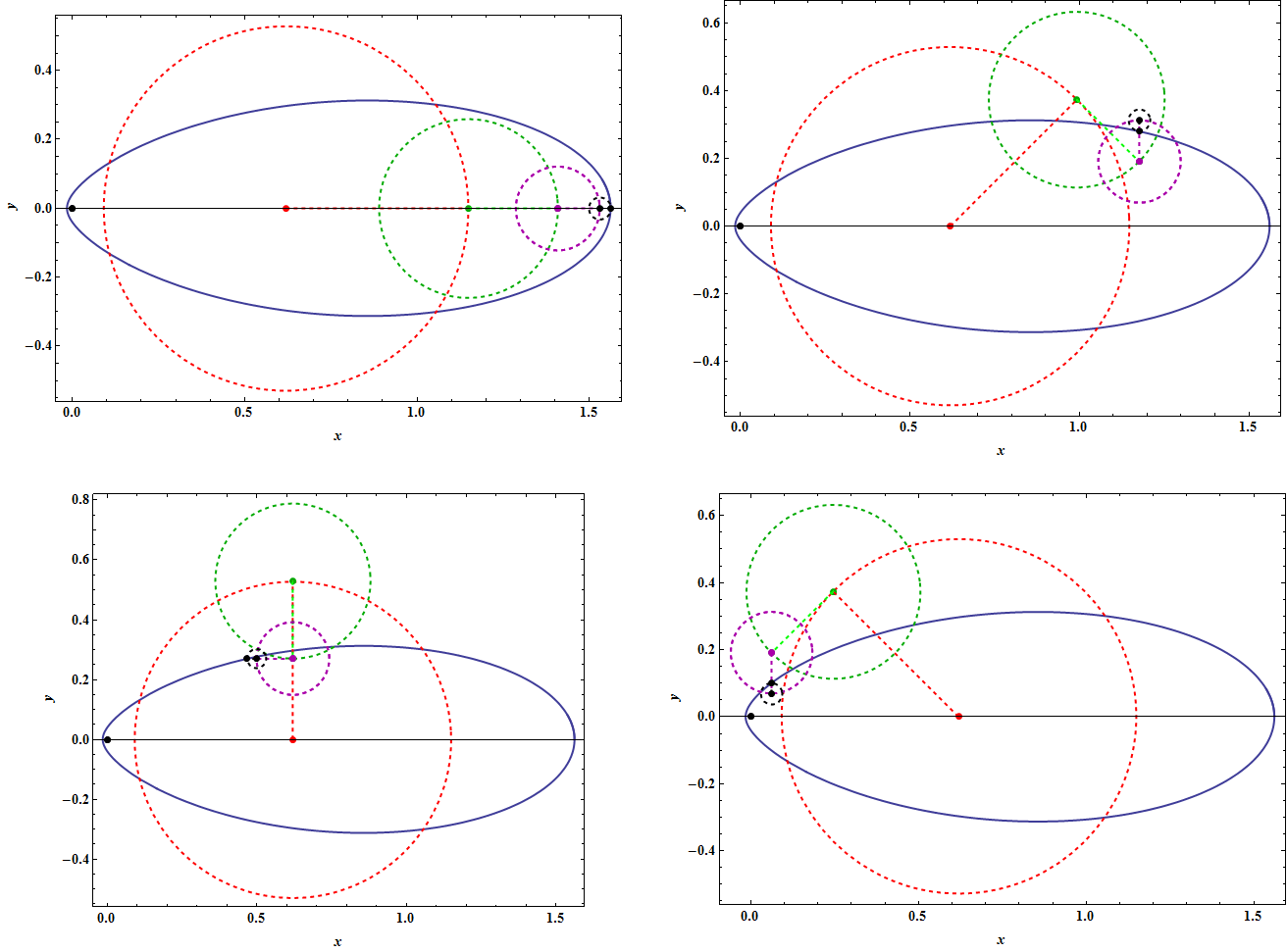

A geometrical construction involving four generating circles :
